OBS / Video Connection Details
The connection details are the same for both the hyper and evolution channels and to connect to our RTMP live server.
Please log in to view your connection details.
OBS / Video Connection Guide
You can download OBS Studio from https://obsproject.com Make sure that you download the correct version depending on whether you’re using Windows, a Mac or Linux.

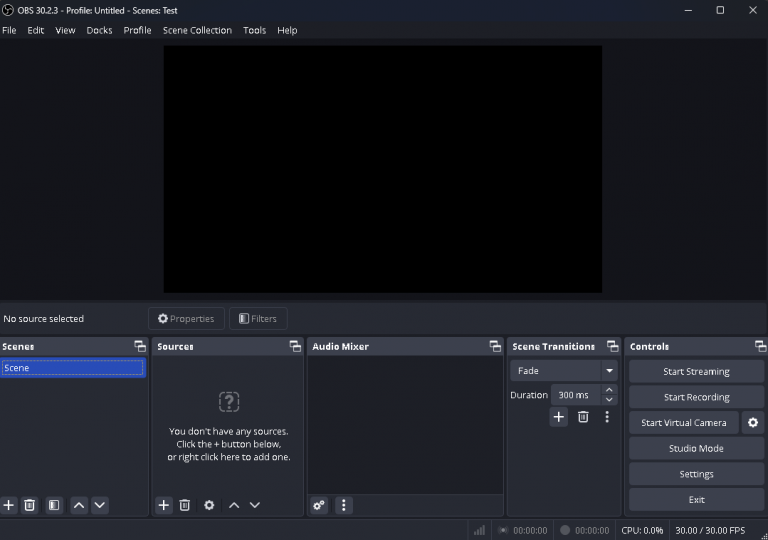

Once downloaded, follow the installation steps and open up OBS Studio on your computer. It should look like this:
How do I create a Scene?
The first step to setting up OBS Studio for Mix365 Live is to create a Scene. This is what you’ll be showing to your audience and includes the audio, visuals and anything else you want to add which are called Sources.
A Scene should be automatically created for you, but if not you can add one by clicking the plus button at the bottom of the Scenes box.
You can also name them so you may want to call it something like My Mix365 Live Stream.
How do I add Sources?
Audio

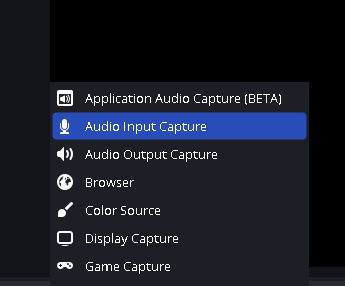

First, you’ll want to add audio to your Scene so people can hear your show. To do this go to Sources and choose Audio Input Capture. This is an input from your equipment.

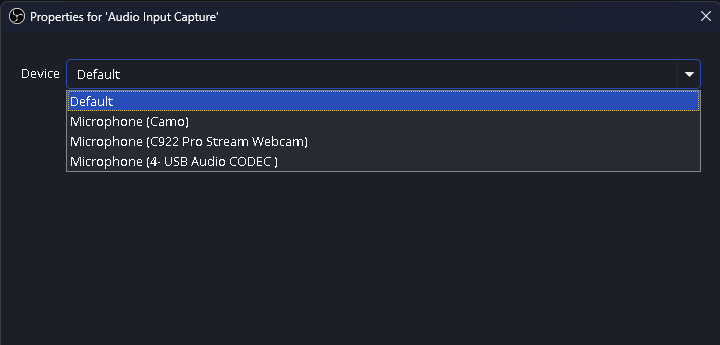

Then name the source and click OK. OBS will then give you the option of what input you’d like to have for this source from those available on your computer.
Click OK and you now have an audio source for your stream.
Video
To add visuals to your stream, you’ll need to add another input as with the audio.

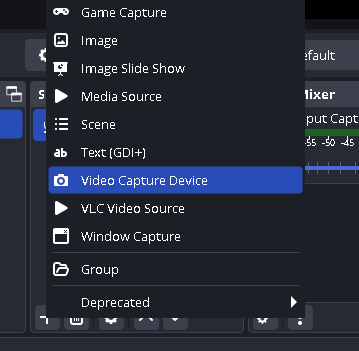

To do this go to Sources and choose Video Capture Device.
Then name the source and click OK. OBS will then give you the option of what input you’d like to have for this source from those available on your computer.
Click OK and you now have a video source for your stream. You may want to resize the source to be the same size as the black square.
Logo
You may also want to add a logo or image alongside/rather than the video.

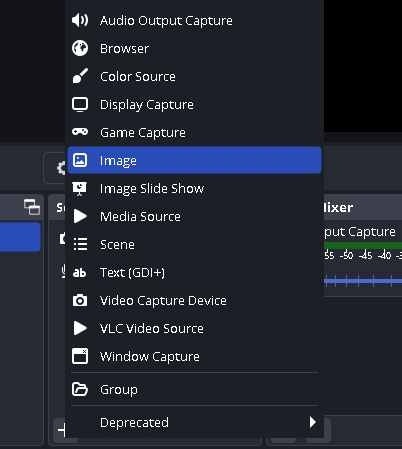

To do this easily go to Sources and choose Image.
Then name the source and Click OK. OBS will give you the option of what image you’d like to have for this source from those available on your computer.
Click OK and you now have an image that can be resized and positioned how you want.
OBS Streaming Settings
Our system is centralised and runs from the cloud. When using the settings below this connects to OUR system and not direct to source i.e Our Website, Mixcloud or twitch ect. It’s a fully automated system and in the event of this not working please report this straight away.
What settings do I need to connect to Mix365 Live?

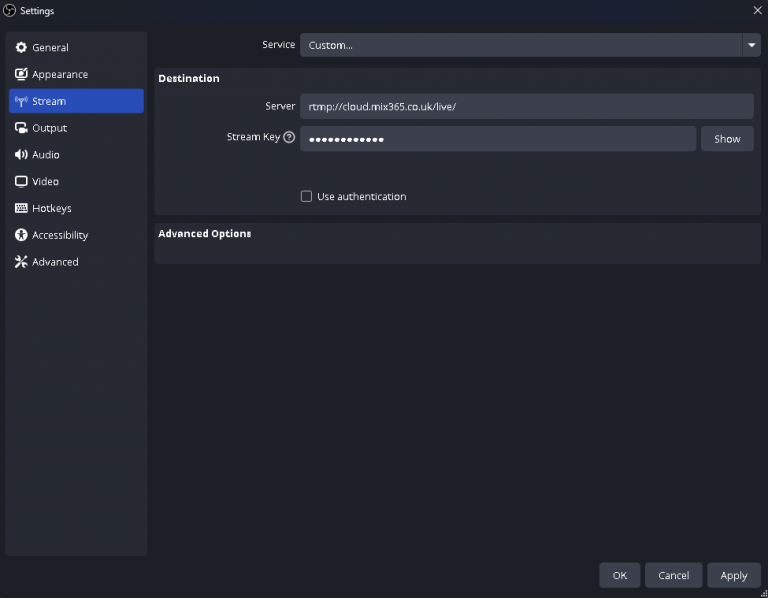

With your stream sources set up, you’ll want to make sure the settings are correct for streaming on Mix365 Live. To do this, go to the Settings tab on OBS Studio and select Stream.
The settings you’ll want for Mix365 Live are as follows:
Please log in to view your connection details.
We would recommend not changing any of your audio or video settings from the default on your streaming software the first time you stream. Changing the settings can result in the connection not working correctly.
Whats Next
Now your stream and settings are set up and connected to Mix365 Live all you need to do is click the Start Streaming button on your streaming software.
How do I ensure I have the optimal settings for streaming?

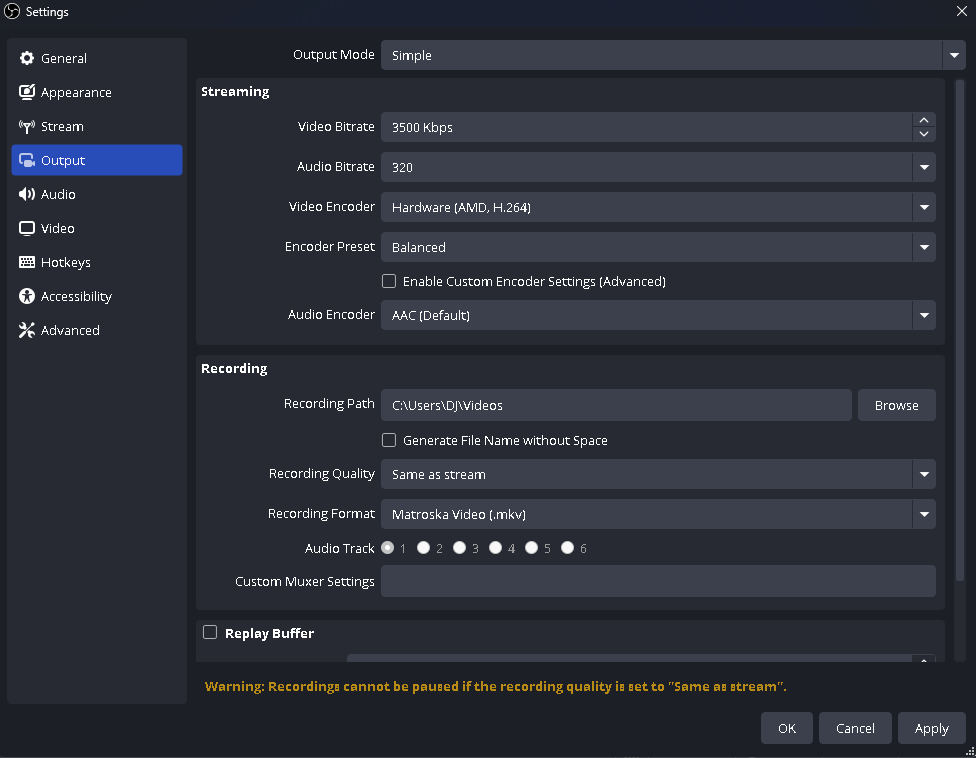

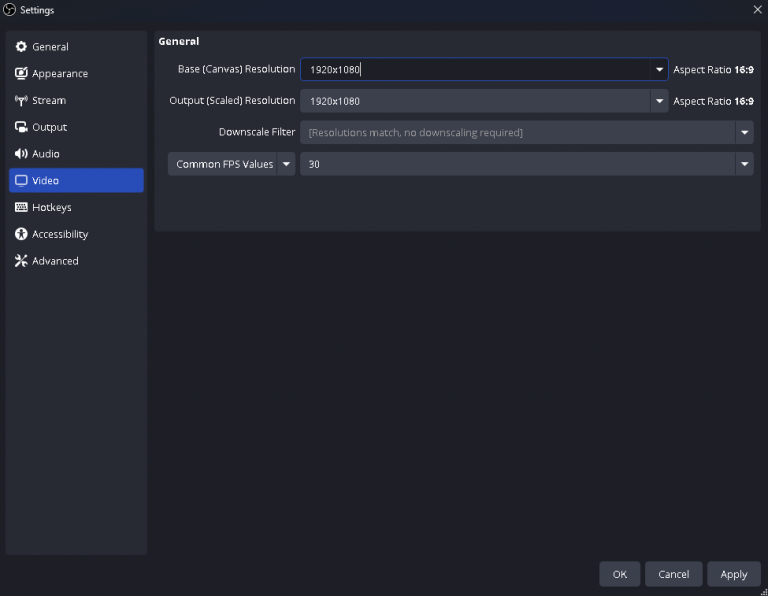

Video resolution – we recommend a video resolution of 1080p and a visual ratio of 16:9 (1920×1080) You can of course use a lower resolution if you wish to do so.
Video bitrate – we recommend setting video bitrate to between 2500kbps to 3500kbps and using CBR not VBR
Audio bitrate – we recommend setting audio bitrate to 320kbps. As a music-focused streaming platform, we want your viewers to experience the best possible sound quality.
IceCast / Audio Connection Details
Please log in to view your connection details.
There are many applications that can stream to Icecast our main application that we recommend is BUTT
- Setup Guide -
You may use your own software of choice to stream to our platform and our examples are setting up streaming with BUTT broadcaster

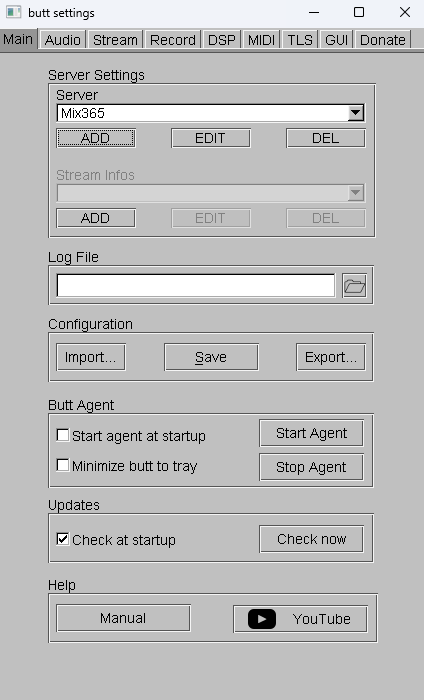

From your mixing software or Butt broadcaster software, Click on the `settings` button to get started, and it will load the Settings window:

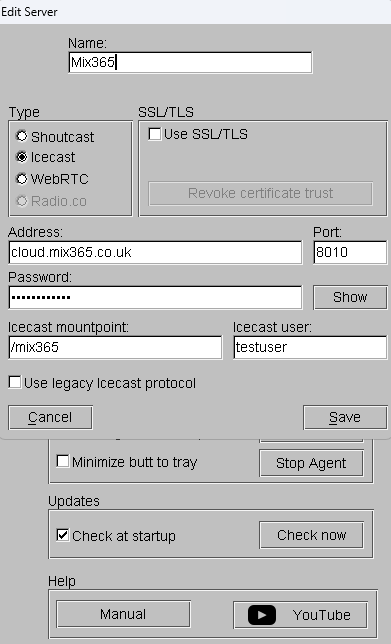

On the `Main` option in settings select `add` and refer to streaming settings below
Configuring Audio

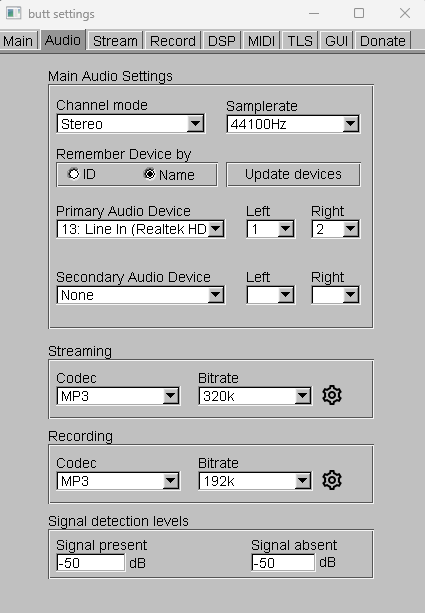

On the settings menu go to `Audio`, BUTT provides support for a number of audio input types. If you have multiple sound devices you may also select which one to use. Butt default settings would be the best preference, such as `Microsoft Sound Mapper` or `Default PCM Device`
Complete

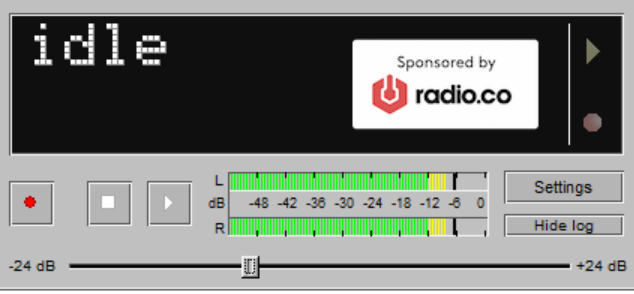

You can adjust the slider bar underneath the audio bars – in the yellow is fine – please stay out of the red as it will distort. This is you main audio output level onto our system
Once you are happy with everything, ensure there are no DJ’s live and simply hit the play button. It will connect up and you will be LIVE streaming, to finish simply hit the stop button.
You must be logged in to chat. Please login.
Icecast / Audio Testing
To connect to our Icecast testing server:
- Icecast 2 Address:
- cloud.mix365.co.uk
- Port:
- 8055
- Username:
- mix365audio
- Password:
- PhA4dKwSur
- Mount Point:
- /
- Audio Bitrate:
- 320 kbps
Please log in to view your connection details.
Do you have an audio file you would like to upload, to one of the radio stations ? Simply select which station you would like – choose your file – and upload !
Or, Upload your recoded sets to our main audio channel Mix365 Live
